Camera Module
USB UVC camera module for low-light and night-vision imaging, suitable for embedded devices and evaluation.
Reduce driver development effort: UVC support enables quick evaluation
Support low-light validation: infrared LEDs help capture images in dark environments
Shorten PoC cycles: USB connection works well with PCs and embedded boards
Easy to extend to AI vision: suitable for OpenCV, V4L2, and GStreamer pipelines

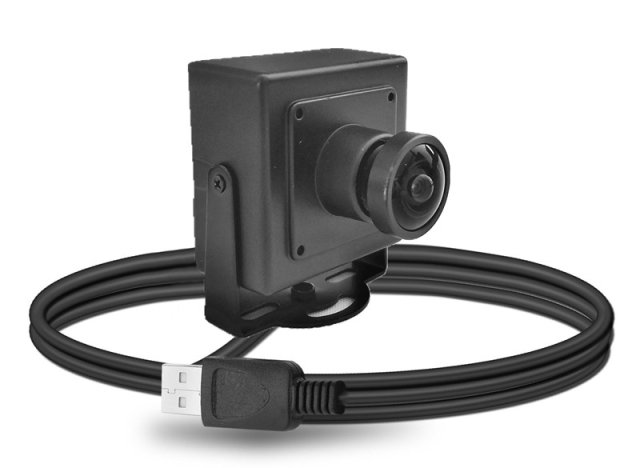

Night monitoring, care applications and in-device imaging require low-light performance, FOV, infrared conditions and USB compatibility. This module is easy to evaluate and can lead to lens or enclosure customization.
Video capture is checked over USB, then exposure, resolution, frame rate and IR conditions are tuned by use case.
Low-light results depend on illumination, target distance and reflection. We recommend evaluation under near-real conditions.
Share environment, required FOV, distance and host platform. We can guide evaluation steps.

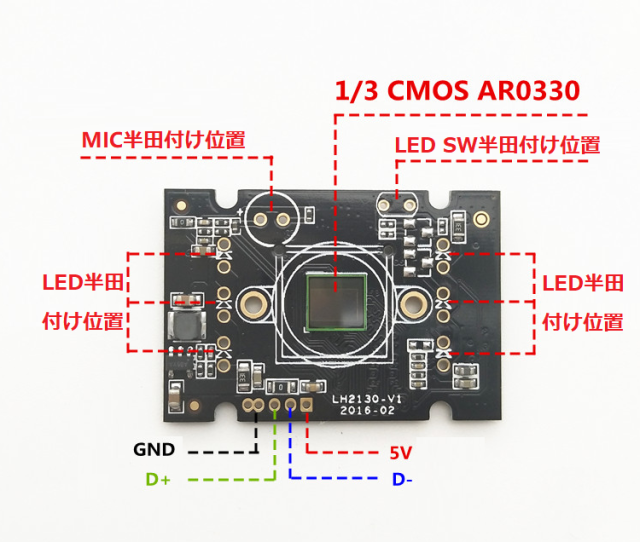

| Interface | USB 2.0, 300万画素 (3MP), 標準UVCプロトコル |
|---|---|
| Sensor | 1/3″ CMOS AR0330, 画素サイズ 2.2µm×2.2µm |

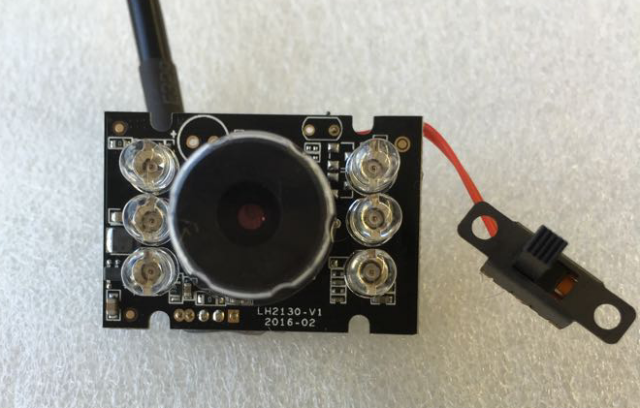

| Night Vision | 低照度赤外LEDライト 6粒搭載, LED ON/OFF SW付き, 850nm±10 |
| Sensitivity | 2.0V/(Lux-sec) |
| Lens EFL | 6mm±5%（視角60度）/ 2.1mm±5%（視角150度） |
| Wavelength | 850nm±10 |
| F/NO (Infinite) | F/NO=1.8 |
| Focus Range | 20mm～∞ |
| Optical Distortion | < -4.0% |
| Frame Rate | 30fps（MJPG/2048×1536）, 13fps（YUY2/2048×1536） |

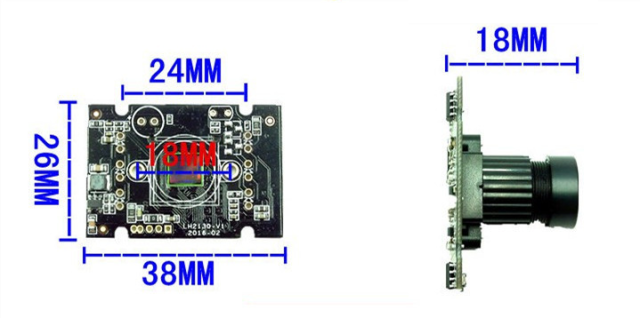

| PCB Size | 2.6cm × 3.8cm |
| Lens Mount | M12 × P0.5 |
| Operating Voltage | 3.3V～5V |
| Power Consumption | < 0.7W |
| Operating Temperature | -10℃～75℃ |
| OS Support | WinXP/Vista/Win7～Win11, Mac-OS X 10.4.8+, Linux with UVC（≥2.6.26）, WinCE with UVC, Android 4.0+ |
| Software & SDK | AMCAP（カメラテスト）, VLC, DirectShow SDKソース, V4L2サンプル, Webカメラアプリ, 動体検知アプリ, QTアプリ |
Please request materials if you need datasheets, SDKs, V4L2 samples, DirectShow SDK, or evaluation documents.
Datasheets, SDK documents and integration guides are managed on the downloads page.
It supports the standard UVC protocol, so it can be recognized as a standard camera in many environments.
It is designed for Linux / Debian boards such as ARM9, ARM11, Cortex-A9, and Cortex-A53 platforms.
With UVC / V4L2 support, it can be integrated into OpenCV, GStreamer, and V4L2-based image capture pipelines.
The 60° lens is suitable for focused views, while the 150° lens is better for wide-area observation.
Contact us for embedded AI camera, image recognition, night monitoring, or inspection device prototyping.
